小中型固定安装
Small / Medium Install
推荐关注 Cecilia 音柱、Petra 全频箱、RT 监听与匹配功放处理。适合主日礼拜、小型敬拜、查经和多功能空间。
Consider Cecilia columns, Petra full-range speakers, RT monitors and matched amplification for worship and multipurpose rooms.
产品中心
Products
产品不是孤立选择，而是围绕空间结构、敬拜形式、系统目标和同工操作流程进行匹配。
Products are selected as part of a complete system around room structure, worship style, system goals and team workflow.
CHOOSE BY SCENARIO
先看场景，再选型号
Start with the Scenario, Then Select Products
不同空间的重点不同：讲道清晰度、敬拜音乐动态、覆盖均匀性、安装方式与后期操作都会影响产品选择。我们建议先按使用场景判断系统方向，再查看型号参数。
Different rooms have different priorities: speech clarity, worship dynamics, coverage, installation method and daily operation all shape product selection.
中大型礼堂主扩
Large Hall Main PA
推荐关注 Cornerstone 线阵、CS-118 低频、补声与完整 DSP 管理。适合较深空间和更高覆盖需求。
Consider Cornerstone arrays, CS-118 low-frequency support, fills and complete DSP management for larger halls.
便携敬拜与临时扩声
Portable Worship
推荐关注 Thunderous T-1 + TS-1T 组合系统。适合临时聚会、外展活动、小组敬拜和移动使用。
Consider the Thunderous T-1 + TS-1T system for mobile worship, temporary gatherings and outreach events.
FEATURED PRODUCTS
重点产品与公开规格
Featured Products
以下为 LumenSonic 目前重点展示的产品及公开规格。具体配置会根据场地尺寸、覆盖需求、安装条件和使用目标确认，最终以项目方案书为准。
Featured products and public specifications. Final project configuration is confirmed according to room size, coverage needs, installation conditions and usage goals.
CECILIA

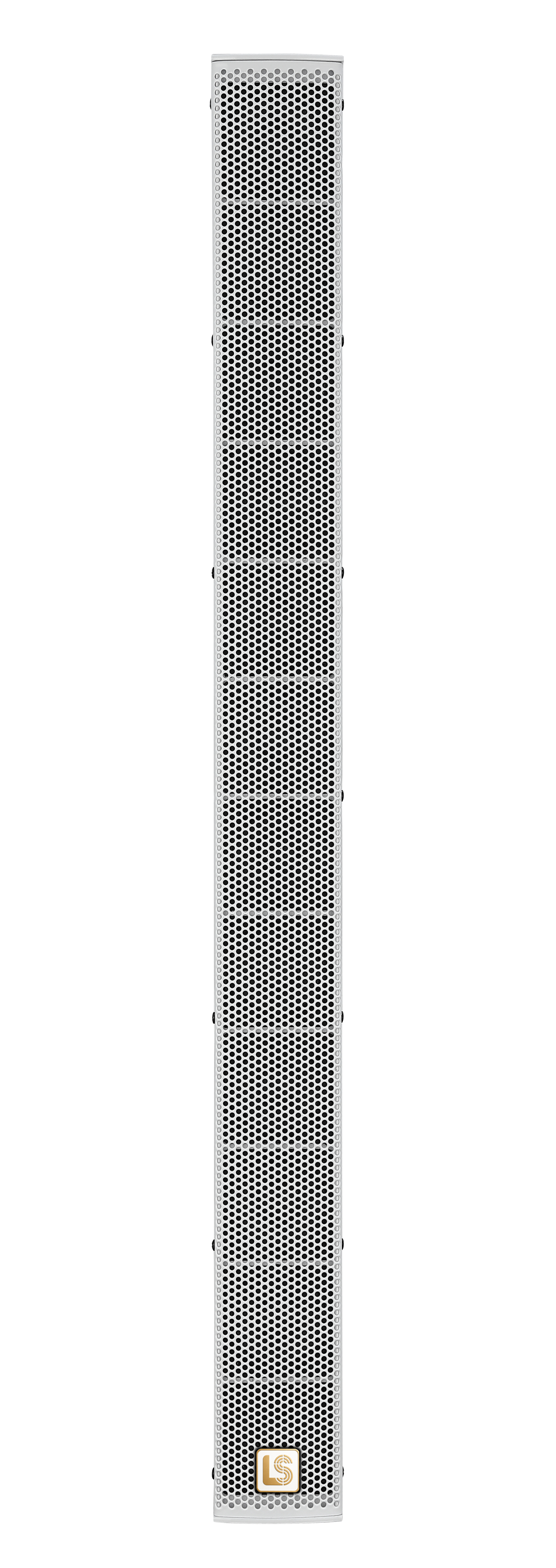

Cecilia C-12
全频音柱系统，适合注重语言清晰度、外观融合和固定安装的教会与礼堂空间。
Full-range column system for churches and halls where clarity and discreet appearance matter.
- Type
- Full-range column array speaker
- Power
- 360W RMS / 720W Peak
- Frequency
- 80Hz - 20kHz ±3dB
- Coverage
- 90° × 30°
- Sensitivity
- 96dB (1W/1m)
- Max SPL
- 126dB
- Impedance
- 8Ω
- Size / Weight
- 70 × 86 × 820mm / 3.5kg
PETRA

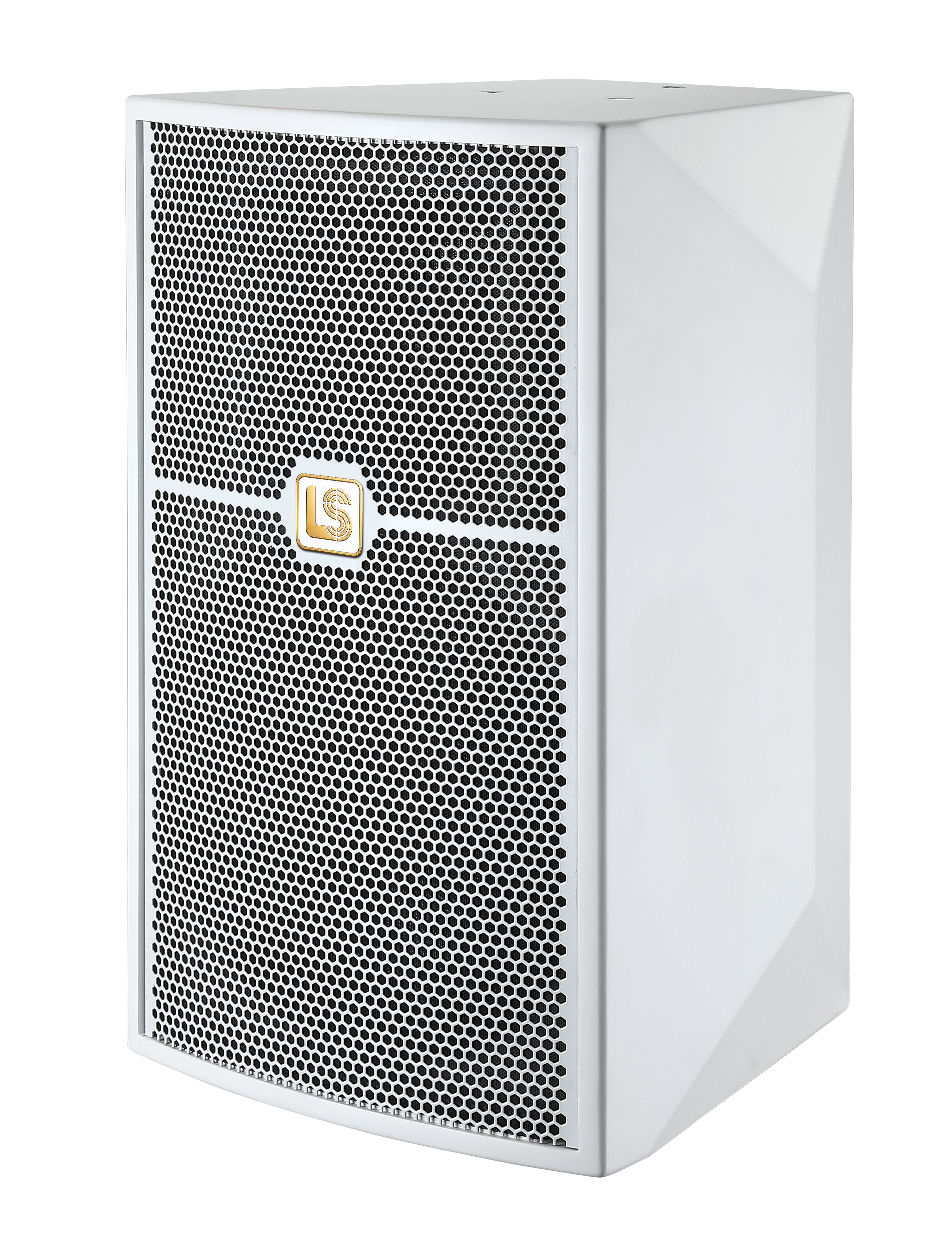

Petra PT-12
常规全频扬声器，可用于主扩、补声或多功能空间，兼顾语言和音乐表现。
Full-range loudspeaker for main PA, fills or multipurpose rooms, balancing speech and music.
- Type
- 12" two-way full-range speaker
- Power
- 400W Rated / 800W Max
- Frequency
- 50Hz - 20kHz ±3dB
- Sensitivity
- 98dB
- Impedance
- 8Ω
- Drivers
- 12" LF + HF driver
- Size / Weight
- 360 × 385 × 595mm / 21kg
CORNERSTONE

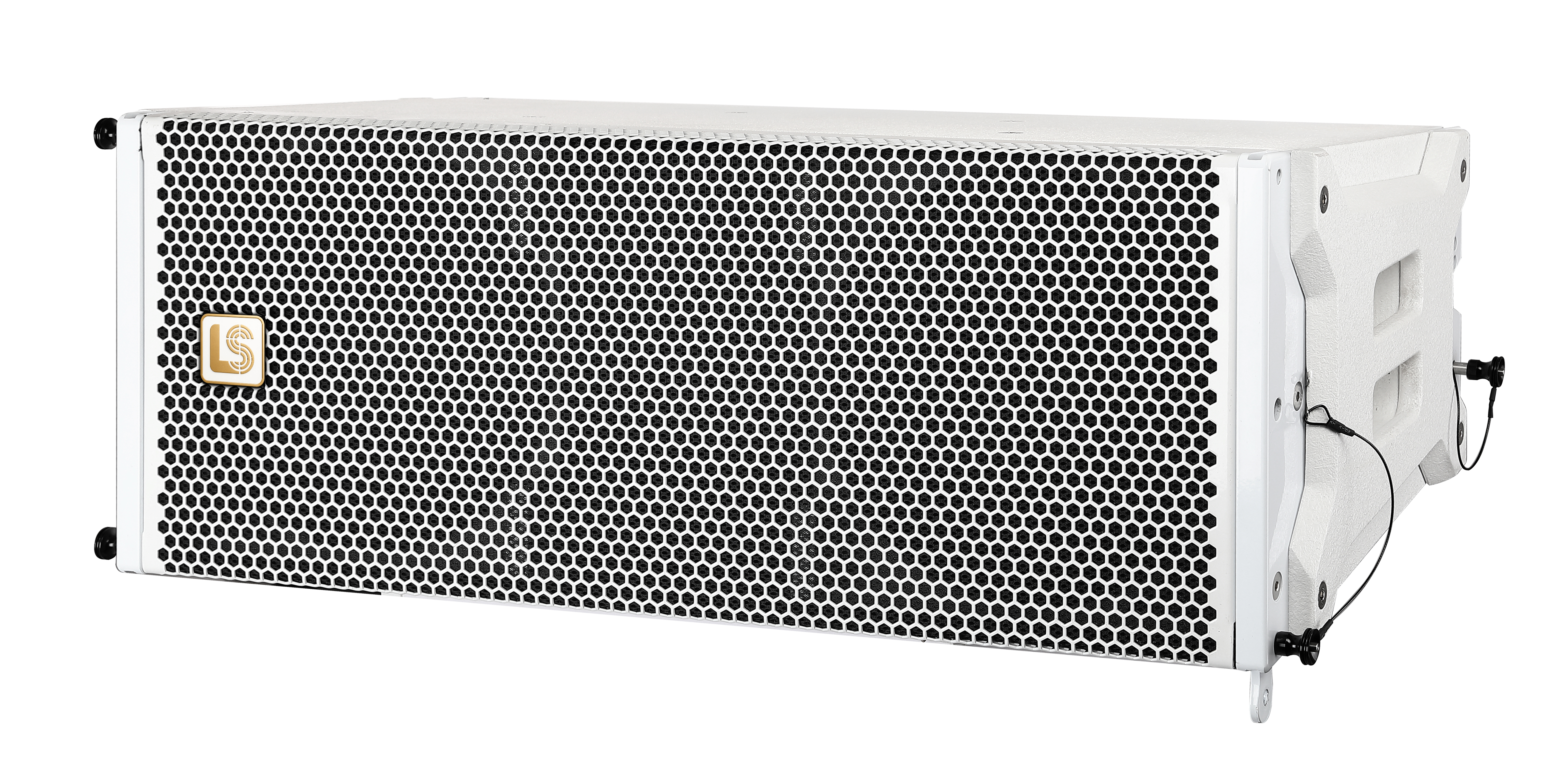

Cornerstone CS-210
中大型礼堂主扩线阵系统，适合需要更高覆盖控制和远距离投射的空间。
Line-array system for larger halls needing controlled coverage and throw.
- Type
- Dual 10" line-array speaker
- Power
- 700W Rated / 1400W Peak
- Frequency
- 65Hz - 20kHz
- Coverage
- 100° × 15°
- Sensitivity
- 105dB ±3dB
- Impedance
- 8Ω
- Recommended HPF
- ≥100Hz
- Size / Weight
- 800 × 288 × 385mm / 21.6kg
CORNERSTONE

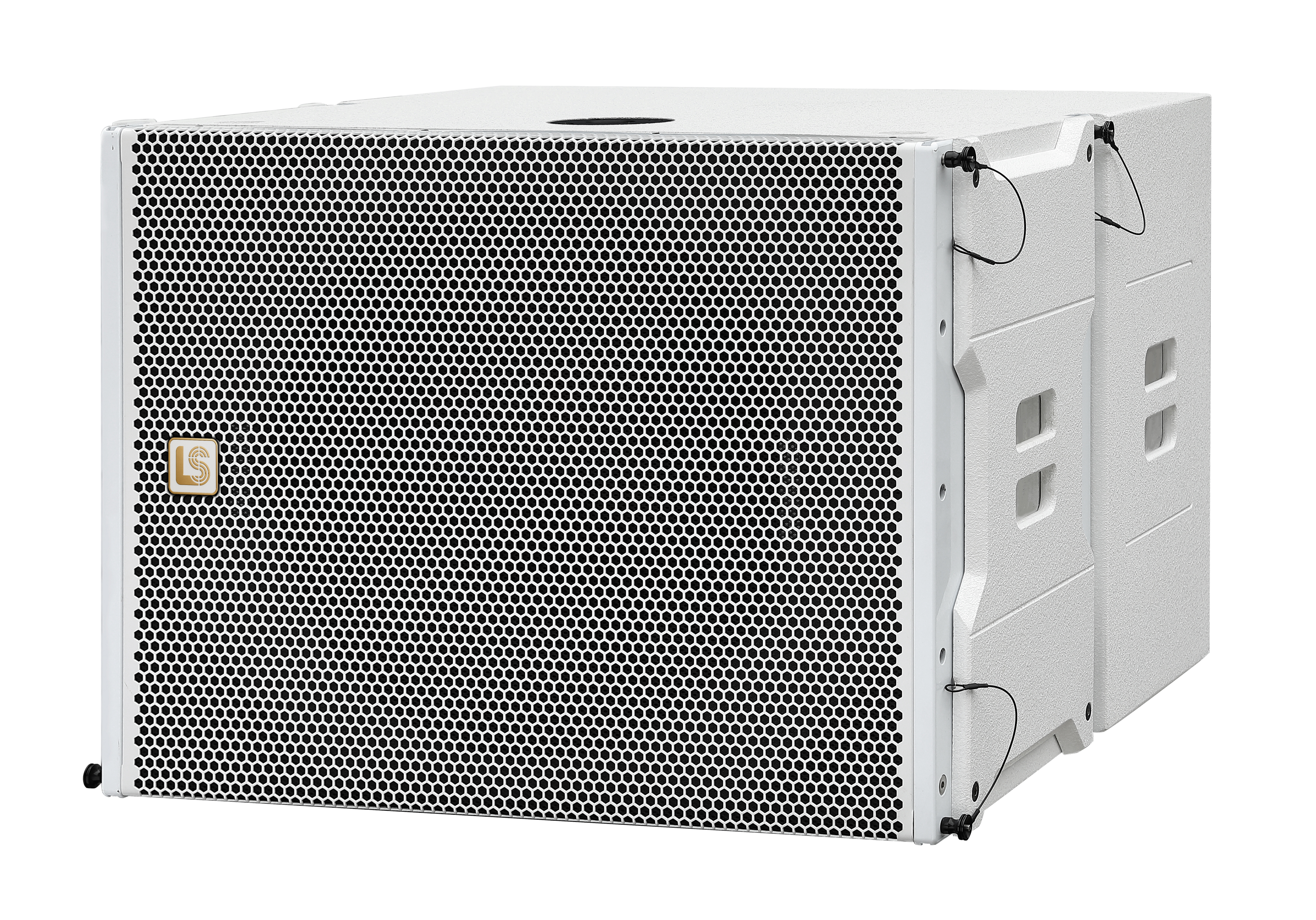

Cornerstone CS-118
配合线阵系统使用的低频扬声器，为敬拜音乐和大型活动提供低频支撑。
Low-frequency support for array systems, worship music and larger events.
- Type
- 18" low-frequency speaker
- Power
- 800W Rated / 1600W Peak
- Frequency
- 35Hz - 100Hz
- Sensitivity
- 98dB
- Impedance
- 8Ω
- Size / Weight
- 800 × 556 × 708mm / 59kg
- Finish
- Polyurea coating
THUNDEROUS

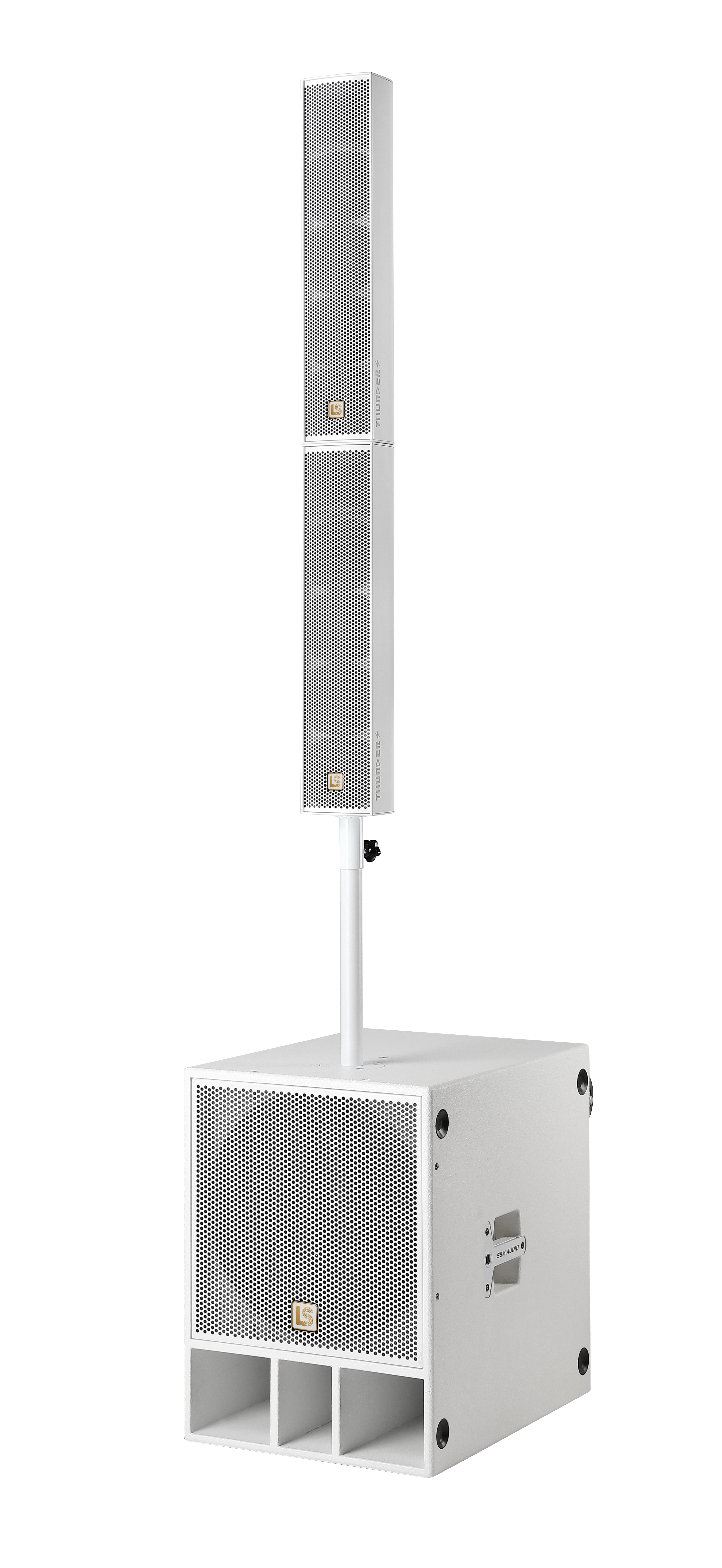

Thunderous T-1 + TS-1T
便携音柱与低频组合系统，适合临时扩声、小组敬拜、外展活动和移动场景。
Portable column and subwoofer system for temporary worship, small groups and mobile events.
- System
- T-1 column + TS-1T subwoofer
- Amplifier
- 2 × 1300W / 4Ω
- DSP
- 24bit / 96kHz processing
- T-1 Frequency
- 90Hz - 20kHz
- T-1 Coverage
- 100° × 10°
- TS-1T Frequency
- 37Hz - 200Hz
- TS-1T Max SPL
- 126dB / 130dB Peak
MONITOR

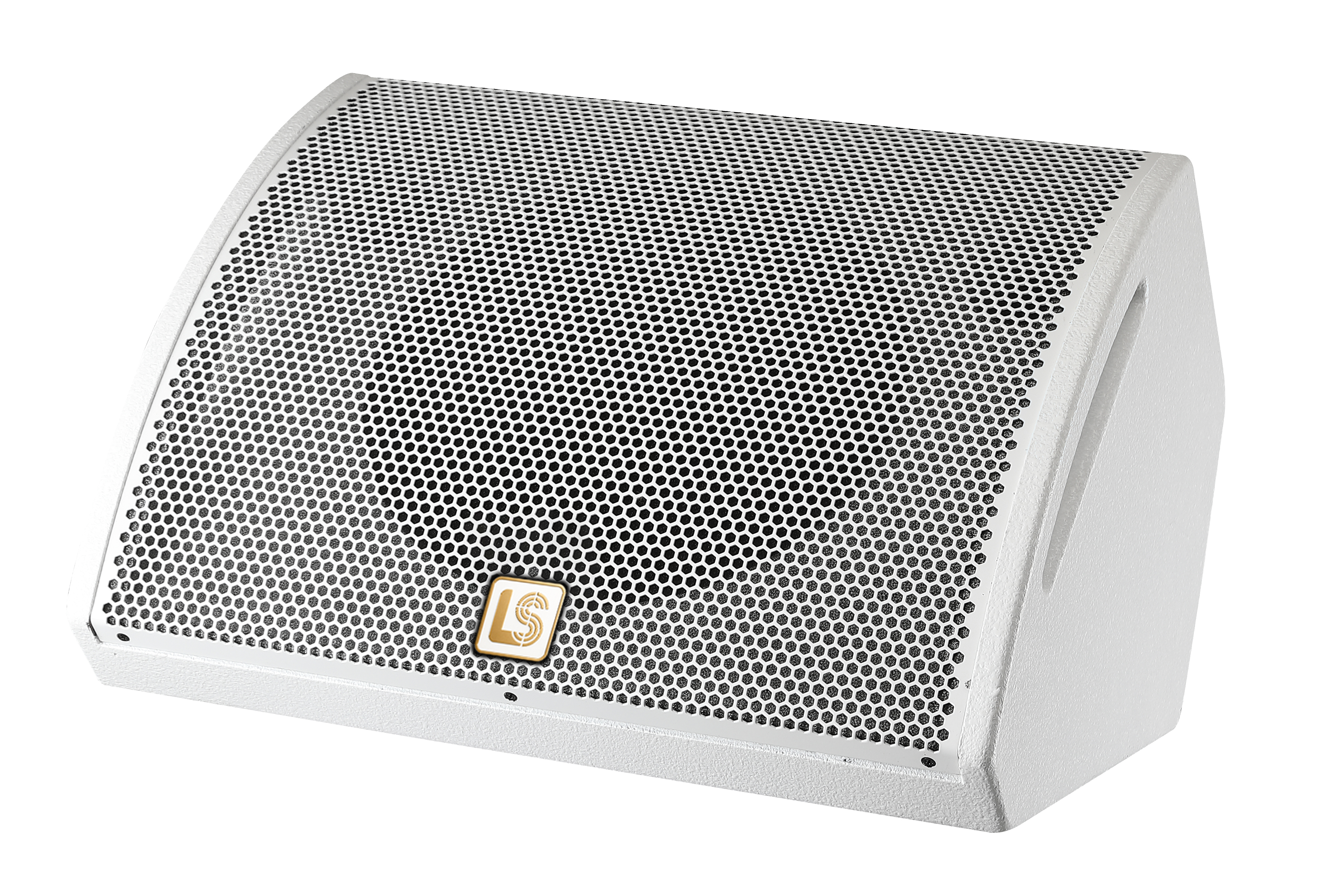

RT-12 Monitor
适合敬拜队、讲台或舞台使用的监听/返听扬声器，帮助团队更清楚地听见自己。
Stage monitor for worship teams, pulpit or platform use, helping teams hear clearly.
- Type
- 12" coaxial stage monitor
- Power
- 350W Rated / 700W Peak
- Frequency
- 50Hz - 20kHz
- Coverage
- 90° × 90°
- Sensitivity
- 102dB
- Impedance
- 8Ω
- Size / Weight
- 554 × 440 × 395mm / 18.8kg
SYSTEM COMPONENTS
完整系统还包括这些环节
A Complete System Includes More
功放与处理
Amplifiers & DSP
按扬声器系统进行功率匹配、分频、均衡、延时、限幅和系统保护。
Matched power, crossover, EQ, delay, limiting and protection for the loudspeaker system.
无线麦克风
Wireless Microphones
用于讲道、主持、领唱和活动，重视人声自然度、稳定性和现场管理。
For sermons, hosting, vocals and events, with stable and natural voice reproduction.
处理器与控制
Processing & Control
让不同区域、电平、延时和保护参数可管理，减少日常误操作风险。
Manage zones, levels, delays and protection to reduce daily operation risks.
安装与配件
Installation Accessories
线材、支架、吊挂、机柜和电源管理决定系统是否安全、整洁、可维护。
Cables, stands, rigging, racks and power management affect safety and maintainability.
需要我们帮你判断产品组合？
Need Help Choosing a Product Combination?
请发送场地尺寸、座位数量、现场照片、当前声音问题和项目范围，我们会先帮你梳理方向。
Send venue dimensions, seating capacity, photos, current sound issues and project scope so we can suggest a direction.
